- Place of Origin: Shandong, China (Mainland)
- Brand Name: kaifeng

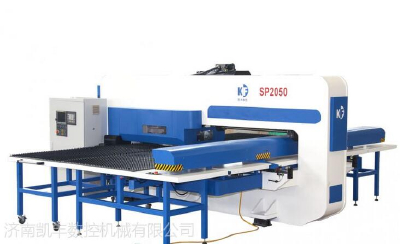

- Model Number: sp2050A
Adopt the high performance new hydraulic system imported from Germany, and the frequency is 900/1800 times per minute.
Ductile cast iron is a long - oriented structure with high precision, high accuracy and long service life.
Japan FANUC numerical control system, four axis linkage function.
High precision and high reliability of the worm gear and worm gear.
Precise control center, very convenient for special craft processing, such as Stamping,Rolling,Extrusion,Emboss,Louver,Nibbling Rib,Tapping processing.
Closed-type frame with heat treatment, good rigidity and eliminate welding stress, ensure the accuracy of long-term.
Ball screw, linear guide, pneumatic components, electrical components are used in the world famous brand, to ensure the stability of the whole machine performance and high transmission accuracy.
- Place of Origin: Shandong, China (Mainland)
- Brand Name: kaifeng
- Model Number: sp2050A
No | Parameter | Unit | HP3025 | HP5025 | HP3050 | HP5050 |
1 | Nominal pressure | kN | 300 | 500 | 300 | 500 |
2 | Maximum punching diameter | mm | 88.9 | |||
3 | Maximum work piece size (once again) | mm | 1250×2500 | 1250(1500)×5000 | ||
4 | Maximum workpiece thickness | mm | 6 | |||
5 | Maximum work weight | kg | 150 | |||
6 | Punching accuracy | mm | ±0.1 | |||
7 | Ram stroke | mm | 32 | |||
8 | X/Y traverse length | mm | 1250/1250 | 2500/1250(1500) | ||
9 | Max.punch frequency | min-1 | 600/900/1800 | |||
10 | Max.postioning speed | m/min | X=80,Y=80 | X=80,Y=64 | ||
11 | Turret turning speed | r/min | 30 | |||
12 | Number of tool stations | set | 32 | |||
13 | The number of floating clamp | set | 2 | 3 | ||
14 | Numerical control system | FANUC | ||||
15 | Monitor | 10.4 inches color monior | ||||
16 | Power supply (AC 3 380V) | kVA | 40 | |||
17 | Gas consumption | m3/min | 0.05 | |||
18 | Air pressure | MPa | ≥0.5 | |||
19 | Dimensions (length x width x height) | mm | 4995×2736×2600 | 4995×5260×2600 | ||
20 | Machine weight | Tons | 14 | 16 | 15 | 18 |
